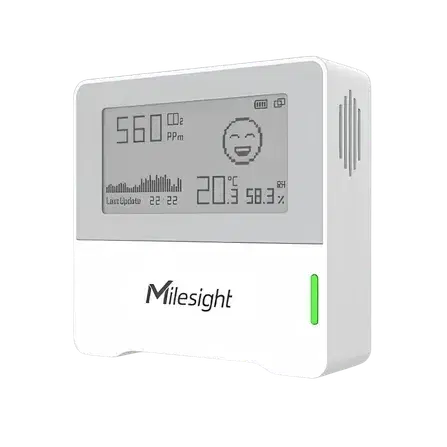

AM103 Indoor Ambience Monitoring Sensor
Loading...
Specifications
Size
68 x 65 x 20.5 mm
Power
2 x 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
Weight
182.5g (Batteries Included)
Display
AM103: 2.13-inch E-Ink Screen; AM103L: No Display
TX Power
16 dBm (868 MHz), 22 dBm (915 MHz), 19 dBm (470 MHz)
Battery Life
Up to 4.5 Years (AM103), 5 Years (AM103L)
CO2 Accuracy
±(30 ppm + 3% of Reading)
Installation
Wall Mounting via 3M Tape or Screws
Configuration
NFC Mobile App or LoRaWAN Downlink
Humidity Range
0% to 100% RH
RX Sensitivity
-137 dBm @300 bps
Humidity Accuracy
±2% RH (Typical at 25°C)
Temperature Range
-20°C to +60°C
Ingress Protection
IP30
Temperature Accuracy
±0.2°C (0°C to +60°C), ±0.3°C (-20°C to 0°C)
CO2 Measurement Range
400 to 5000 ppm
Multifunctional Button
Power On/Off, Reset
Wireless Communication
LoRaWAN Class A (OTAA/ABP)
Implementations
