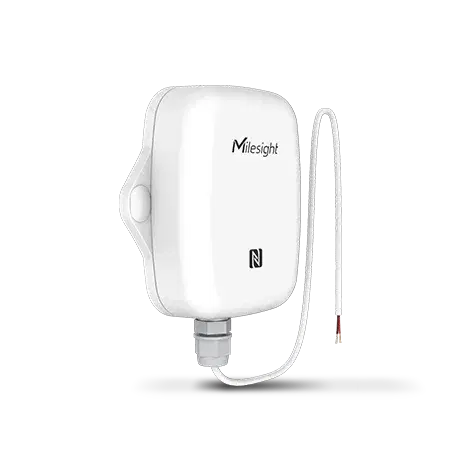

IoT Device
Specifications
Size
105.6 x 85.2 x 27 mm
Power
1 x 4000 mAh ER18505 Li-SOCl2 Replaceable Battery (8000 mAh Version Optional)
Weight
114.2g (With Battery and Wire)
Antenna
Internal Antenna
TX Power
16 dBm (868 MHz), 20 dBm (915 MHz), 19 dBm (470 MHz)
Battery Life
Up to 5 Years (10 min Interval, 25°C)
Cable Length
1 m (Customizable)
Data Storage
Up to 1000 Entries with Data Retransmission
Installation
Wall Screw Mounting, 3M Tape or Cable-Tie Mounting
Configuration
NFC via Mobile App, LoRaWAN Downlink
Humidity Range
0% to 100% RH
Operating Mode
Pulse Counter, Digital Input
RX Sensitivity
-137 dBm @300 bps
Input Interface
1 x GPIO Dry Contact
Advanced Features
Pulse Counting, Digital Filtering, Water Consumption Calculation, Water Flow/Outage Alarms, Temperature Threshold Alarms
Applicable Meters
Reed Switch Meters and Other Passive Pulse Meters
Humidity Accuracy
±3% RH (10–90% RH), ±5% RH (Outside 10–90% RH)
Temperature Range
-30°C to +70°C
Ingress Protection
IP67
Operating Humidity
≤95% RH (Non-condensing)
Transmission Range
Up to 10 km (Line of Sight)
Minimum Pulse Width
250 μs
Temperature Accuracy
±0.3°C (0°C to +70°C), ±0.6°C (-30°C to 0°C)
Operating Temperature
-30°C to +70°C
Multifunctional Button
1 x Internal Power/Reset Button
Wireless Communication
LoRaWAN Class A (OTAA/ABP), D2D
Maximum Input Frequency
2000 Hz
