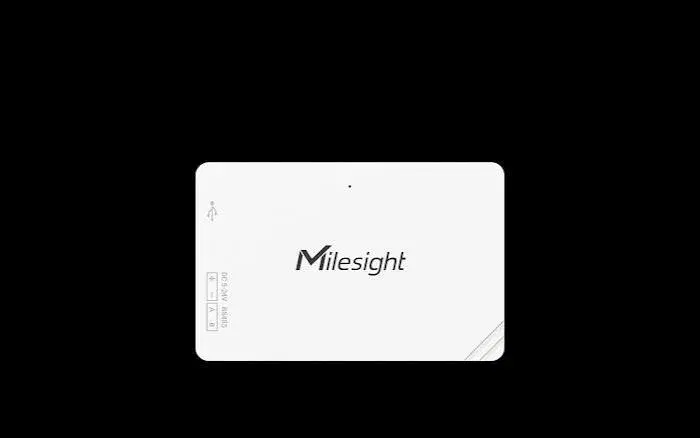

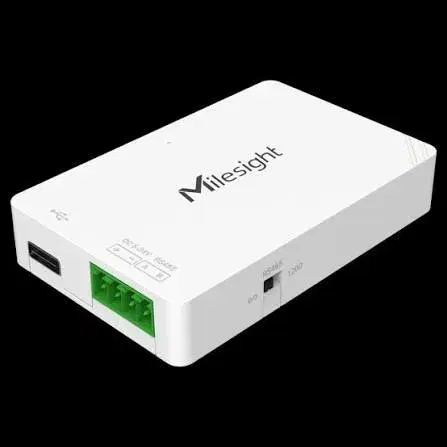

UC100 LoRaWAN Modbus RS485 IoT Controller
Loading...
Specifications
Size
70 x 45 x 13 mm (Connectors Excluded)
Power
5–24V DC via Terminal Block or 5V/1A DC via USB Type-C
Weight
32g
Antenna
Internal or External Antenna (Hardware Optional)
TX Power
16 dBm (868 MHz), 22 dBm (915 MHz), 19 dBm (470 MHz)
Baud Rate
1200–115200 bps
Data Storage
Up to 800 Entries with Data Retransmission
Installation
Desktop or Wall Screw Mounting
Configuration
USB Type-C or LoRaWAN Downlink
Data Interface
1 x RS485 (2-pin 3.5 mm Terminal Block)
RX Sensitivity
-137 dBm @300 bps
Advanced Features
Threshold Alarm, Change Alarm, IF-THEN Commands, D2D Control, FUOTA
Power Consumption
<0.5W
Supported Devices
Up to 32 Modbus RTU Devices
Ingress Protection
IP30
Operating Humidity
0–95% RH (Non-condensing)
Transmission Range
Up to 15 km (Line of Sight)
Operating Temperature
-20°C to +60°C
Communication Protocol
Modbus RTU, Passthrough
Multifunctional Button
1 x Internal Reset Button
Wireless Communication
LoRaWAN Class C (OTAA/ABP), D2D
