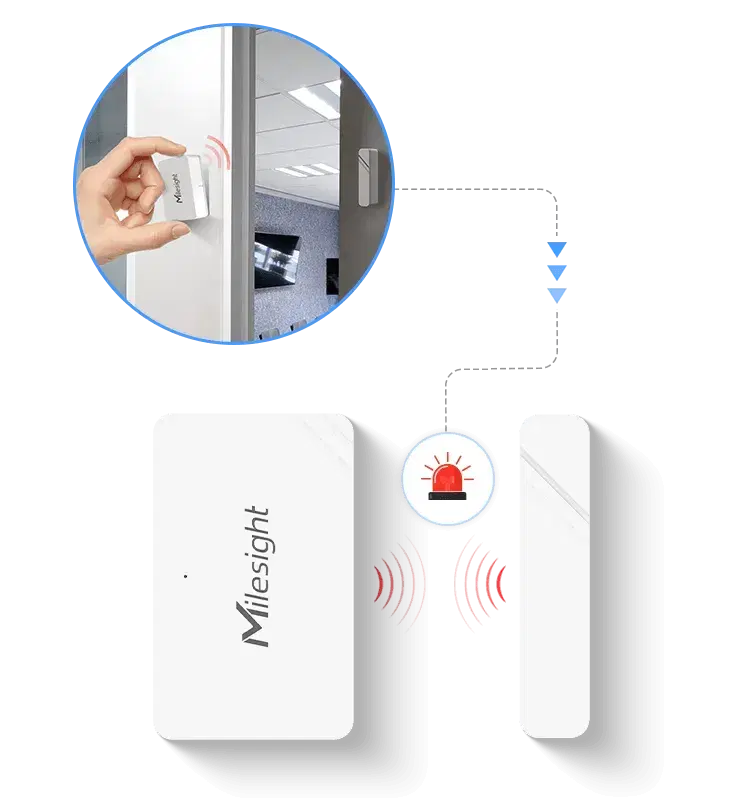

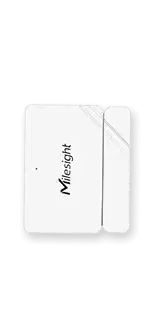

WS301 LoRaWAN Magnetic Contact Switch
Loading...
Specifications
Size
Sensor: 50.5 x 31 x 19 mm; Magnet: 50.5 x 13.5 x 13 mm
Power
1 x 1200 mAh ER14250 Li-SOCl2 Replaceable Battery
Weight
Sensor: 27.9g (Battery Included); Magnet: 13.7g
TX Power
16 dBm (868 MHz), 22 dBm (915 MHz), 19 dBm (470 MHz)
Battery Life
Up to 6.8 Years (SF7, EU868/US915)
Installation
Flat Surface Mounting via Screws or 3M Tape
Configuration
NFC via Mobile App
LED Indicator
Network Status, Open/Close Status, Tamper and Low Battery
RX Sensitivity
-137 dBm @300 bps
Detection Distance
20 mm
Detection Features
Open/Close Status Detection, Tamper Alarm
Ingress Protection
IP20
Operating Humidity
≤90% RH (Non-condensing)
Transmission Range
Up to 15 km (Line of Sight)
Operating Temperature
-20°C to +60°C
Multifunctional Button
1 x Internal Reset Button, 1 x Tampering Button
Wireless Communication
LoRaWAN Class A (OTAA/ABP), D2D
